It supports hdmi2.0, HDR and arc functions, 3D video format, and 4K / 60Hz maximum resolution, Yuv4:4:4.

Supports high speed of 18gbps, supports 3.5mm stereo audio interface output and optical fiber output.

Supports 8 / 10 / 12 bit dark color, switching or assigning 4 HDMI inputs to 2 HDMI outputs.

Supports 1 HDMI audio output, supports selecting out a or out through the remote control B audio separation channel, DTS-HD / Dolby truehd / / DTS / dolby-ac3 / DSD, support 5V-12V wide voltage input.

The input four-way HD signal source can be switched to two-way HDMI output, and the two output interfaces can be switched to display different pictures or the same picture. It supports a channel of HDMI pure audio output, as well as fiber and stereo headphone output (audio output can be switched between out a or out B). It can easily switch or distribute four HD signals on two HD compatible displays or projectors. Our equipment provides solution control for noise, space and security issues, data center, and is widely used in information distribution, conference room demonstration, exhibition hall, school and enterprise training environment.

Description:

Item type:HDMI Array

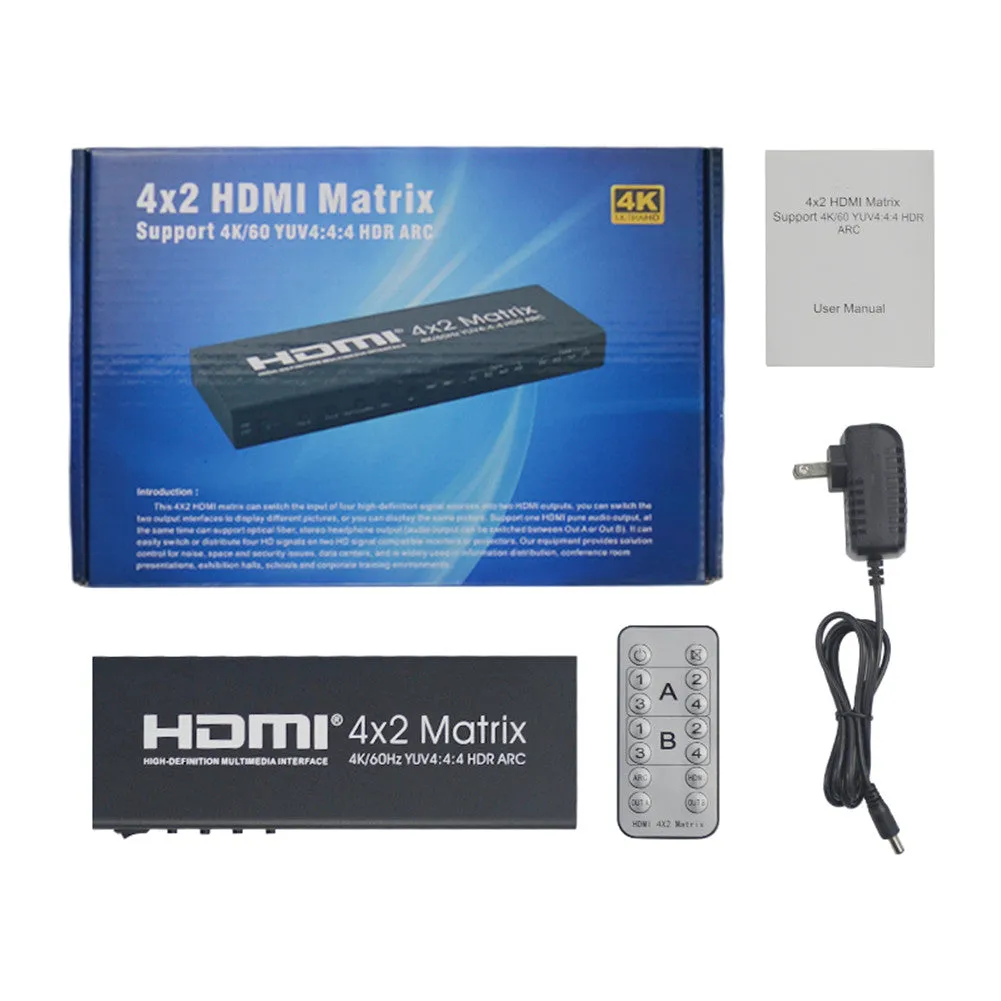

Packing list:

HDMI Array * 1

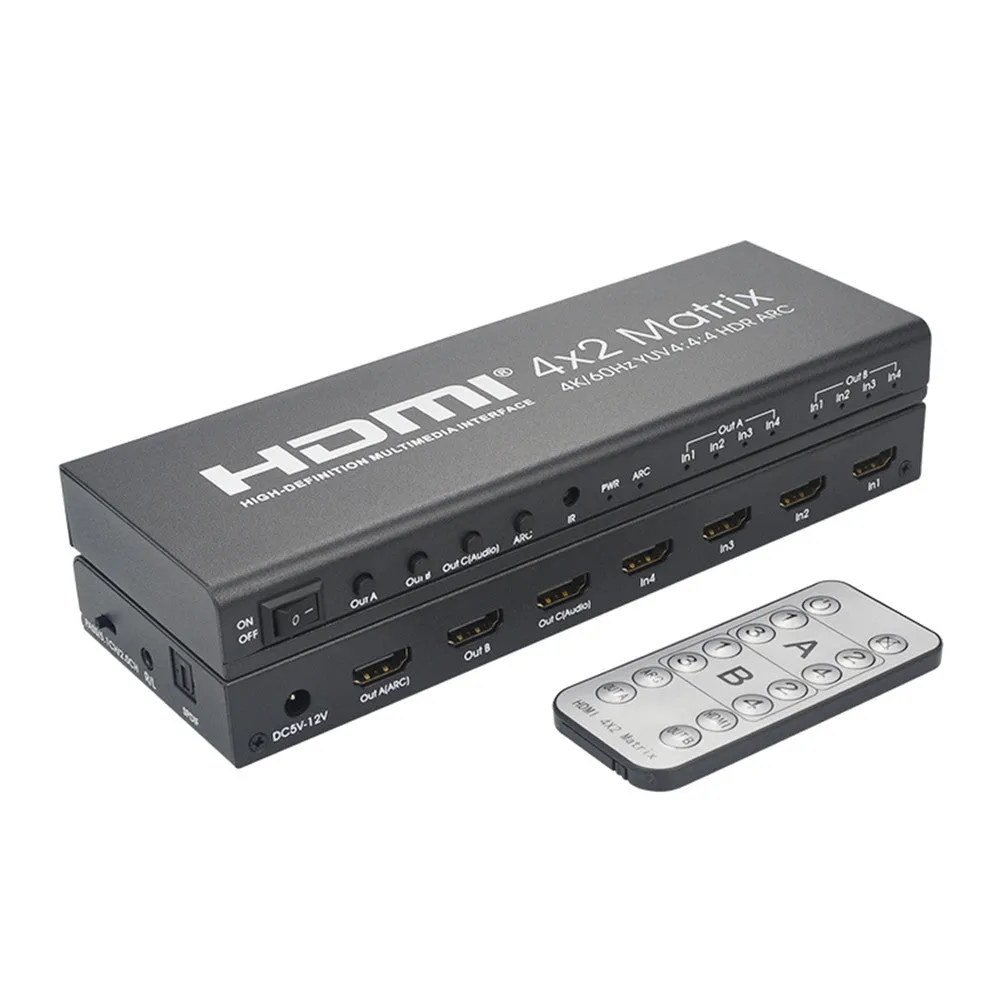

Infrared remote control * 1 (without battery)
5V power adapter * 1
User manual * 1

Notes:

The colors deviation might differ due to different monitor settings, please kindly understand.
