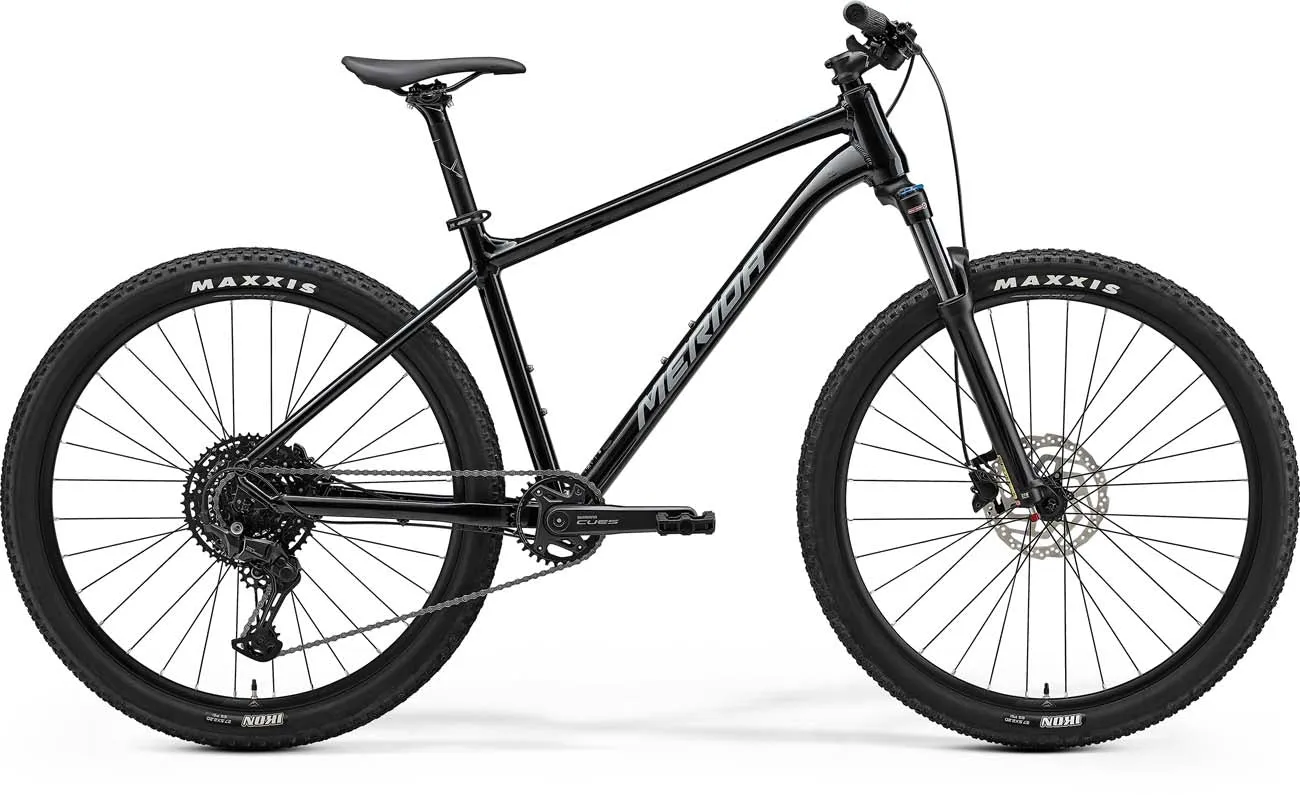

Single chainring aluminium 27.5" wheeled hardtail, featuring a 100 mm air suspension fork, a 10-speed Shimano drivetrain and powerful hydraulic disc brakes. The BIG.SEVEN 200 is ready for your next off-road adventure.
*Double butted aluminium frame with 27.5" wheels
*Less aggressive and more upright geometry for maximum control and comfort
*SR Suntour 100 mm travel air suspension fork with lockout
*Shimano CUES 10-speed drivetrain
*Hydraulic disc brakes
*Internal cable routing
Specifications
FRAME | BIG.SEVEN TFS IV; MAT aluminium; 27.5 WHS; 135x9 AST; BSA BBR |
FORK | Suntour XCR32-ATB LOR; Air; 100 STR; Lockout; 44mm fork offset |
BRAKE - FRONT | Shimano MT200; 2 piston |
BRAKE - REAR | Shimano MT200; 2 piston |
ROTOR - FRONT | Shimano RT10; 180mm |
ROTOR - REAR | Shimano RT10; 160mm |
CHAIN | KMC xGlide |
CHAINWHEEL | Shimano CUES U6000; 32 ATC |
CRANK/SIZE | 170 mm-S, 175 mm-M up |
BB SET | Shimano MT500 |
DERAILLEUR - REAR | Shimano CUES U6000; GS |
FREEWHEEL | Shimano LG300; 11-48 ATC; 10 GER |
PEDAL | VP VPE-891 |
GRIP | MERIDA COMP EC |
H-BAR | MERIDA EXPERT CC; MAT aluminium; 720 WHB; 10 RHB |
H-B STEM | MERIDA COMP CC; MAT aluminium; 31.8 DSH; 7 ASD |
H-STEM/SIZE | XS, S: 70 mm, M: 80 mm, L:90 mm |
HUB - FRONT | Shimano QC300; 100x9 WHF; 32 SPH; Centerlock |
HUB - REAR | Shimano QC300-HM; 135x9 WHR; 32 SPH; Centerlock |
RIM | MERIDA COMP CC; 20 IWR; MAT aluminium |
SADDLE | MERIDA COMP SL; 25% recycled material; V-mount; incl. MERIDA minitool |
SEAT CLAMP | MERIDA COMP QR |
SEAT POST | MERIDA COMP CC; MAT aluminium; 30.9 DSP; 0 SSB |
SHIFTER - REAR | Shimano CUES U6000 |
TYRE - FRONT | Maxxis Ikon; 27.5x2.2"; wire |
TYRE - REAR | Maxxis Ikon; 27.5x2.2"; wire |
Smaller 27.5" wheels for a compact easy to handle riding experience. Take to the trails with ease. Our friendly team at Wollongong Bike Hub can help you choose the best MTB for your adventures, even if that's just around the local pathways. We stock a great range of both e and non-ebikes in our store. And don't forget to complete your cycling experience with an Australian standards approved helmet and even some accessories.
